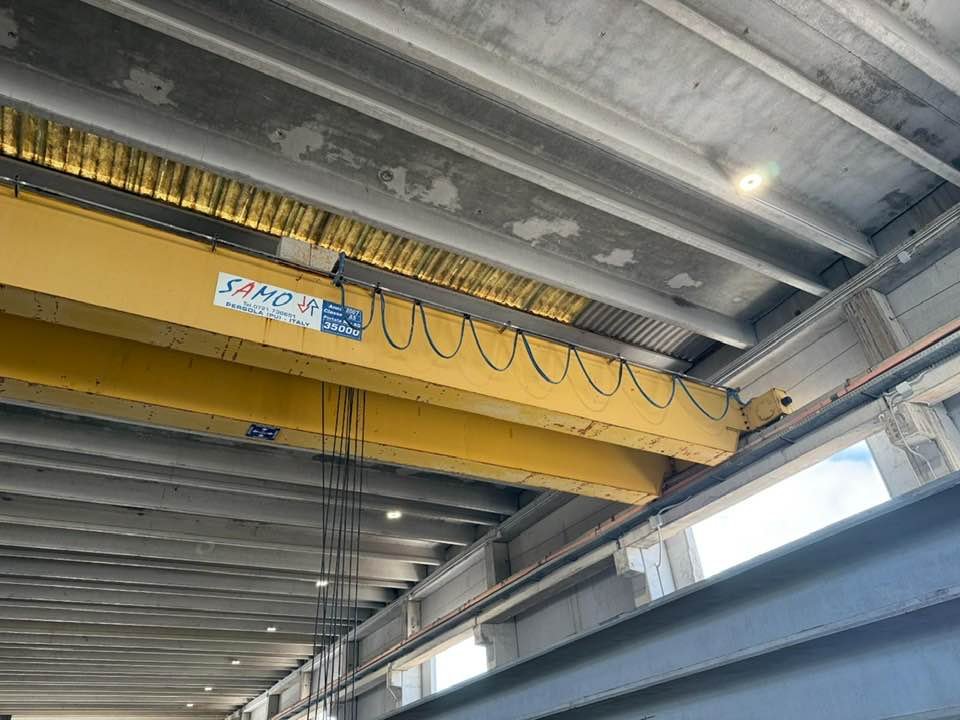

Carriponte – Head Cranes

5 OVER HEAD CRANES - CARRIPONTE 1x SAMO 25T span 15990mm 1x SAMO 35 T span 15990mm 1x SIC 15 T Span 16400 2x SIC 15 T Span 18620mm

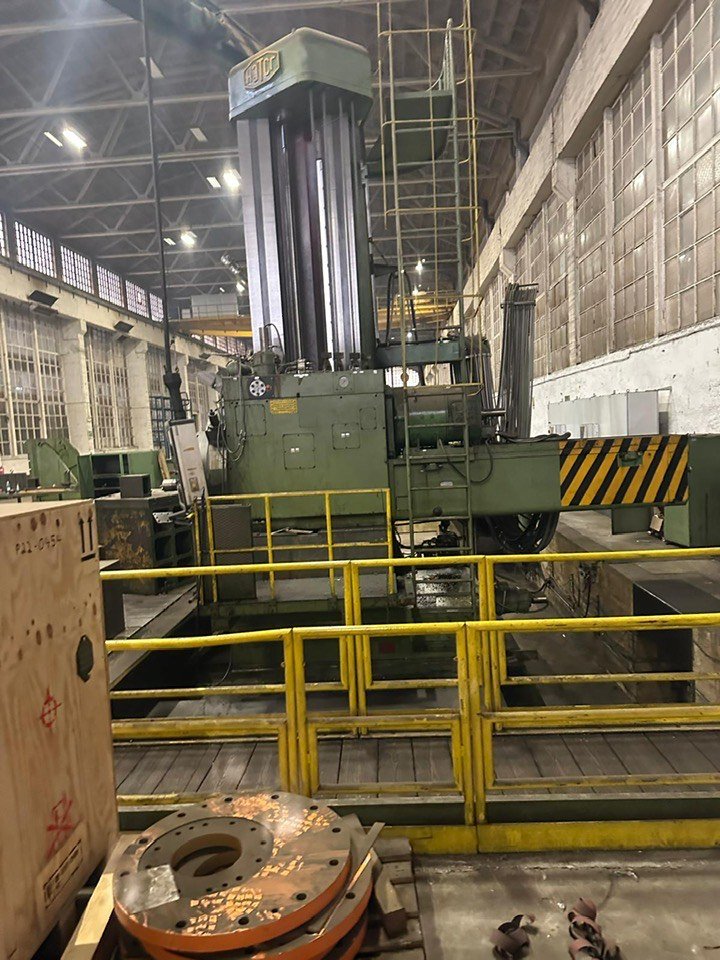

Spindle 200H3TCR

Russian boring (alesatrice) Spindle 200 H3TCR Cnc Siemens X 6000 Vertical 3000 1 floor plate 1800x6000 mm Rotary table 2000x2000 mm retrofitted in 2015 with new Siemens control

Gear hobbing machine MODUL ZFWZ 3150x30 : Max. diameter without the holder: 3150 mm Max. diameter with the holder: 1600 mm Min. diameter: 500 mm Min. width of a tooth: 1000 mm module 30 Max. corner of an inclination of a tooth: 45 degree Max. rearranging of a tangential pusher: 500 mm MILL Max. diameter: 350 mm Max. length: 440 mm TIGHTENING A TABLE Diameter: 2400 mm Aperture: 500 mm Depth of an aperture: 1100 mm The greatest loading: 30 ton Vertical distance between the middle: 700-1900 mm

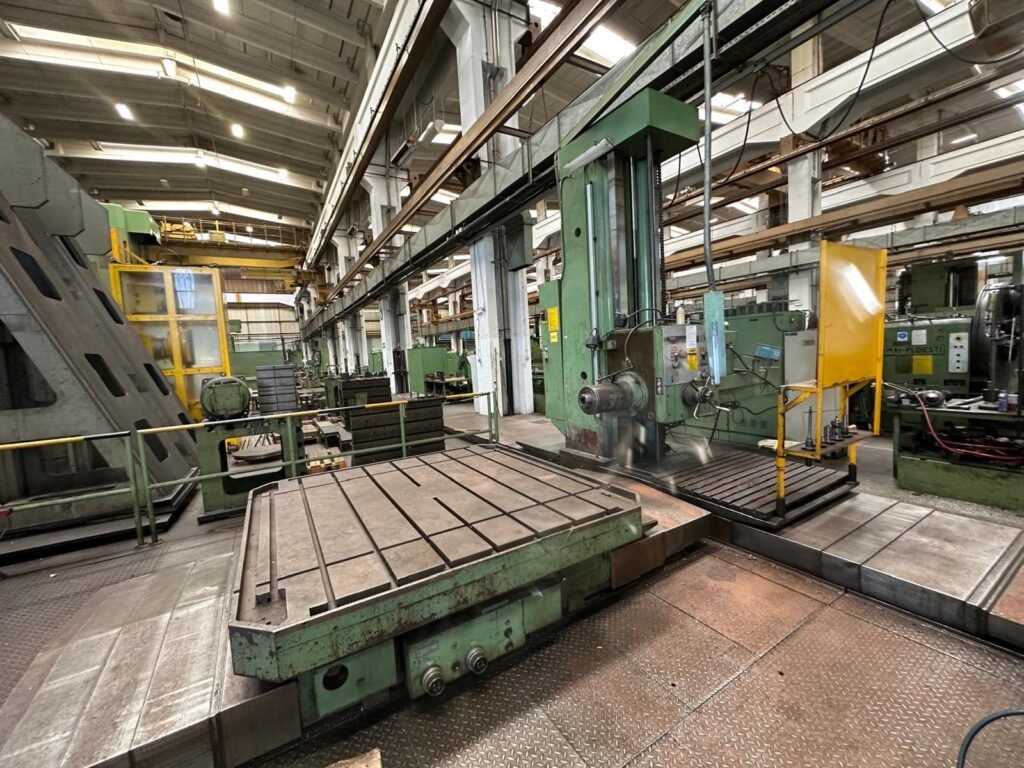

VV 17 I.L.R.

ILR- FLOOR BORING MODEL BG130 SPINDEL DIAMETER 130 MM SPINDEL TAPER ISO 50 X - 4 METER Y - 2 METER Z - 800 MM SPINDEL TABLE -1500 MM ROTARY TABLE- 2200x2200 mm FLOOR PLATE - 2 METER X 5 METER WITH DIGITAL READOUT Rotary table size 2.200x2.200mm - X travel 4.000mm - Y 2.000mm Z 900mm

Simon Cella

Aerial Platform SIMON CELLA BOXER 170 E Working Height: 17 meters Year of manufacture: 1984 Load capacity: 230 kg (2 people) Condition: working

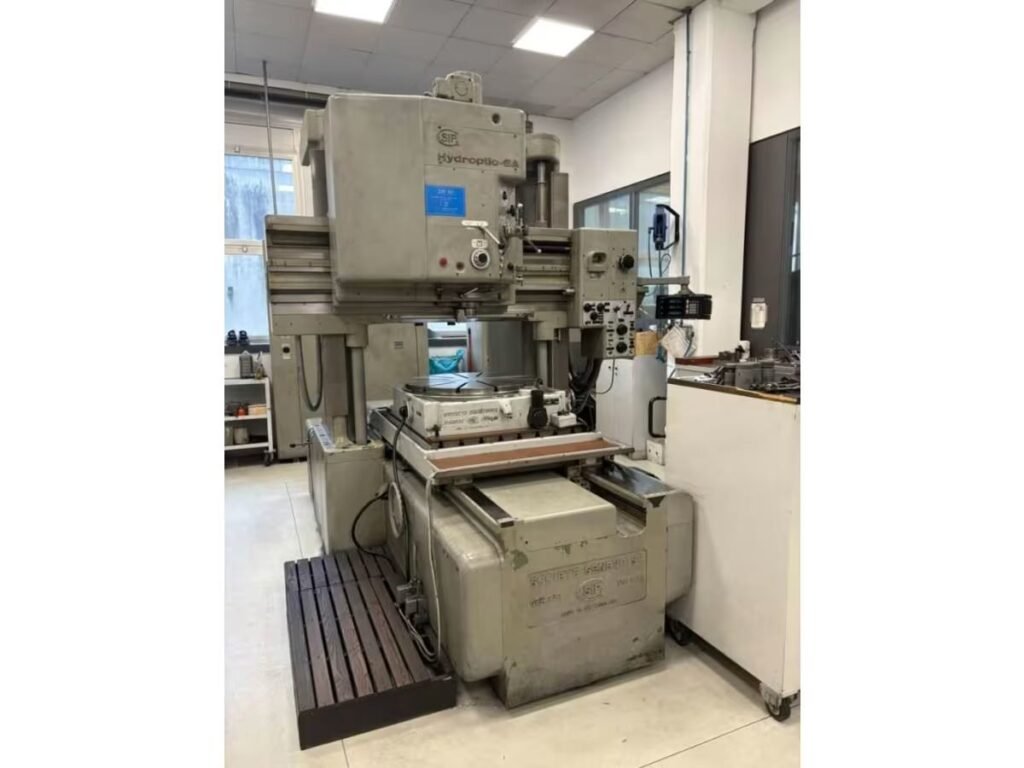

SIP Hydroptic 6A

Jig Boring SIP HYDROPTIC 6A👇 Pointing machine Table length 1100mm Table width 842mm - Longitudinal travel (X-axis) 1000mm Cross travel (Y) 795mm - Vertical travel (Z-axis) Distance between spindle and table 900mm

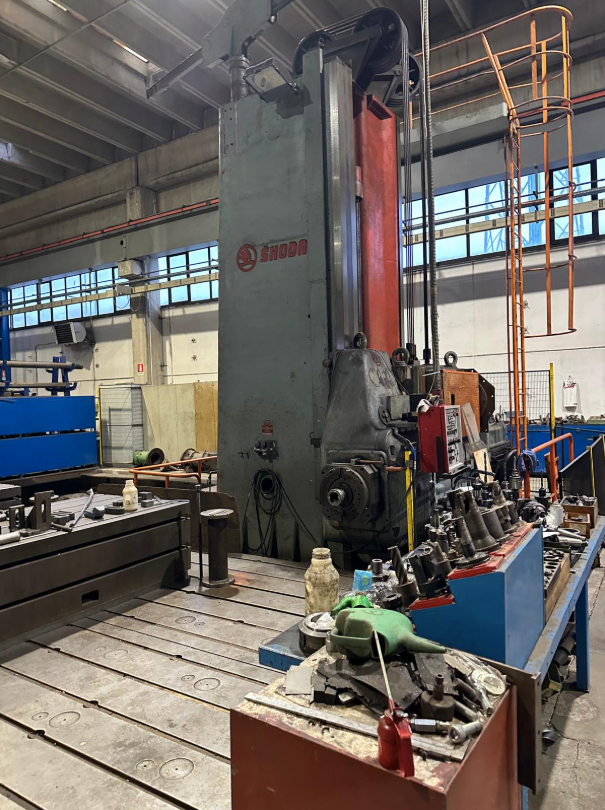

SKODA W 200

FLOOR BORING SKODA W 200 COLUMN TRAVEL (X) 6,000 MM HEAD VERTICAL TRAVEL (Y) 3,150 MM RAM TRAVEL (W) 1,600 MM SPINDLE DIAMETER 200 MM RAM DIMENSIONS 520 X 520 MM SPINDLE TRAVEL (Z) 1,250 MM SPINDLE TAPER Metric 120 SPINDLE MOTOR POWER 101 KW SPINDLE SPEED 2 ÷ 800 RPM TOTAL WEIGHT 85 TONNES YEAR YOM 1972 Retrofitted 2011 COMPLETE WITH: Dro 2 floor plates 6,800 X 1,885 X 400 H MM EACH - 1 BI-ROTATIVE MILLING HEAD - 2 VERTICAL MILLING HEADS - 2 CUBES

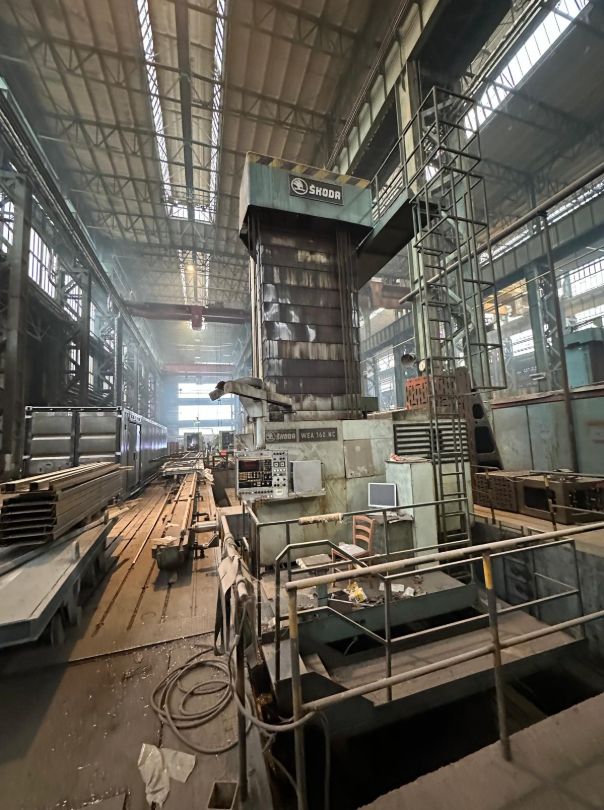

SKODA WEA 160 NC

Skoda Floor boring WEA 160 NC Year 1982 Spindle: 160 mm Spindle taper: ISO 50 Ram 450 x 450 mm Rpm 1 – 800 rpm Maximum spindle travel: 1,600 mm Maximum Ram travel: 1,250 mm X travel 10000 mm Y 3,150 mm Floor plate (L x W): 12,800 x 5,655 mm Bed guide width: 2,000 mm Bed height: 600 mm NC Control System: SINUMERIC 8M

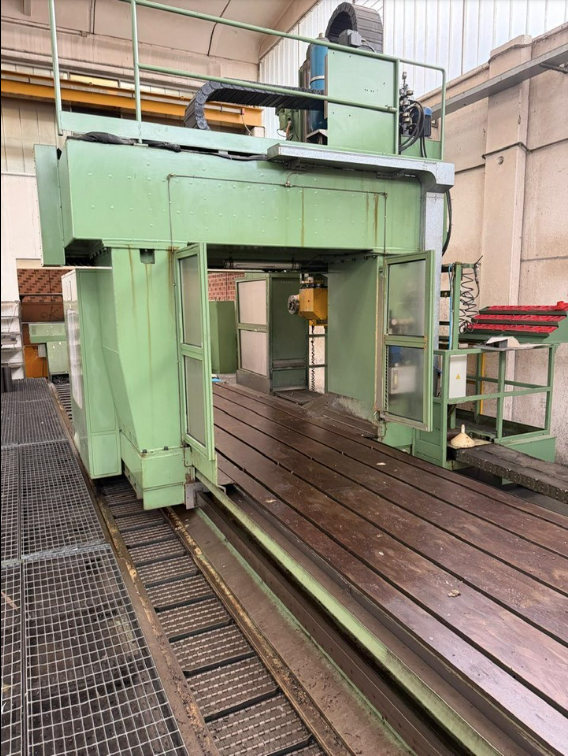

Gantry CMI CNC

Gantry CMI Cnc 5 axis Table 12500x1500 Between columns 1850 mm

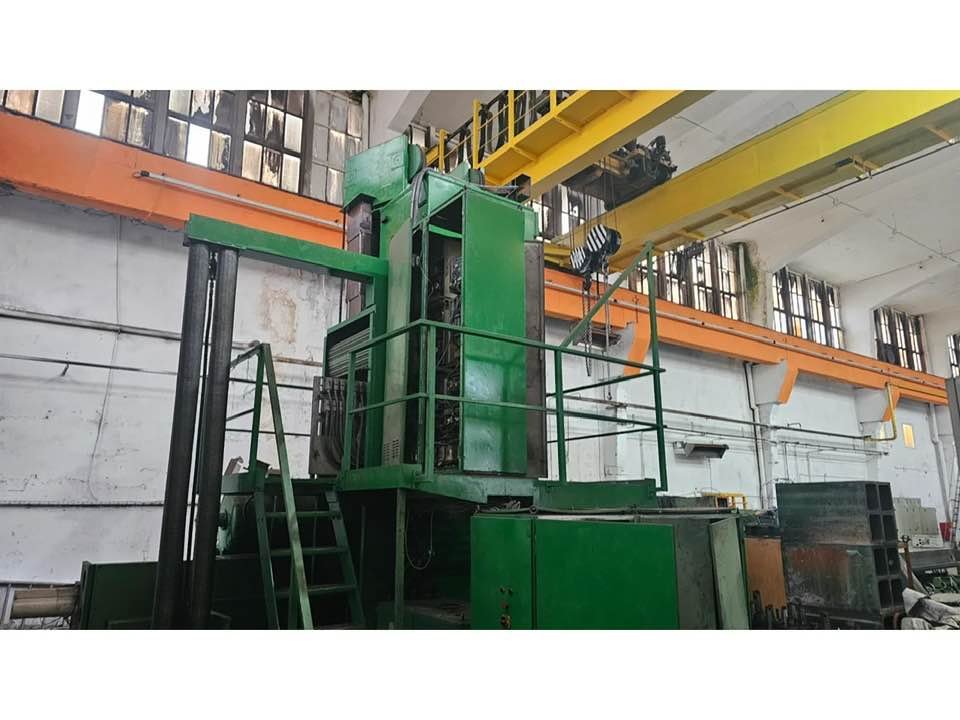

SCHIESS FB180 CNC

SCHIESS FB180 CNC Horizontal Boring and Milling Machine Manufacturer: SCHIESS Model: FB180 – HBM (Horizontal Boring and Milling Machine) Year of manufacture: 1980 Retrofit / Overhaul: Completely rebuilt in 2023 CNC Control: NUM CNC system with auxiliary PC for program and file transfer Machine condition: Fully reconditioned, excellent working condition Technical data: X-axis longitudinal travel: 5,900 mm Y-axis vertical travel: 3,400 mm Z-axis cross travel: 1,350 mm W-axis quill travel: 900 mm (interpolable with Z-axis or milling head) Spindle (quill) diameter: 180 mm Rotary table: Table dimensions: 2,500 × 2,000 mm Maximum table load: 30,000 kg Table type: CNC positioning rotary table Equipment / accessories: T-slot floor plates for clamping oversized workpieces (up to 10 m) Automatic chip conveyor Extended angle milling head ISO 40 Extended angle milling head ISO 50 Universal angular milling head ISO 100 Machine overall dimensions: Installation footprint: 13 × 11 m Overall height: 2 5 m Total machine weight: approx. 96,000 kg
